Reve D

HT Rear Lower Arm (45mm - 48mm - 51mm) (YD-2) [Reve D] RD-009-45 RD-009-48 RD-009-51

$36.99 In Stock Pre-Order Sold out
SKU: RD-009-45
length
Notify when available

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Reviews

HT Rear Lower Arm (45mm / 48mm / 51mm) (YD-2) [Reve D] RD-009-45 RD-009-48 RD-009-51


The HT (High Traction) rear lower arm was completed by the Rêve D development team by testing various materials, shapes and dimensions to achieve the best rear traction.


The HT rear lower arm, which is made by cutting from a lightweight and highly rigid Duracon (POM) material, has a high-precision finish and dramatically improves suspension movement.
Furthermore, by adopting a reversible structure, the damper mounting height can be selected from two types, and it can be easily adjusted according to the road surface conditions and maneuvering style (see the explanation below for details).


There are three lengths: 45 mm, 48 mm, and 51 mm. Please select according to your body width and suspension mount width.
Please try the HT Rear Lore Arm for the best rear traction.


<Compatible models>
◆ YD-2 series, etc. Can be used for models with an inner suspin of Φ3 mm and an outer suspin of Φ2 mm.


<HT rear lower arm accessories>
◆ M2 tapping screw x 4 (for fixing outer suspin)
◆ POM 6mm thick spacer x 2
* The width of the inner suspin side of the HT rear lower arm is 6mm wider than the YD-2 series genuine suspension arm. Since it is narrow, please use the attached 6mm thick spacer when using it for the YD-2 series.

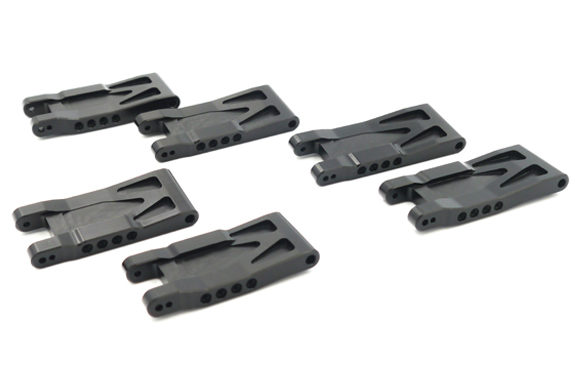

<Line-up>
◆ RD-009-45: HT Rear Rear Arm (45mm)

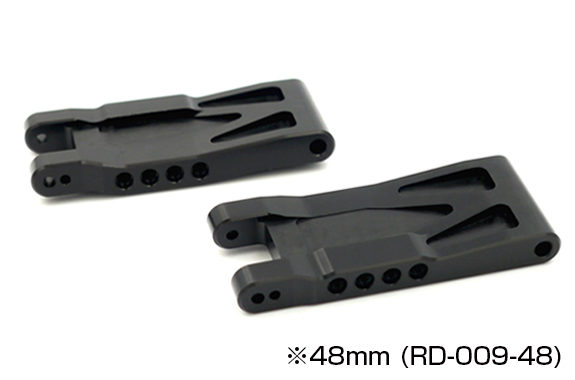

◆ RD-009-48: HT Rear Rear Arm (48mm)
◆ RD-009-51: HT Rear Rear Arm (51mm)

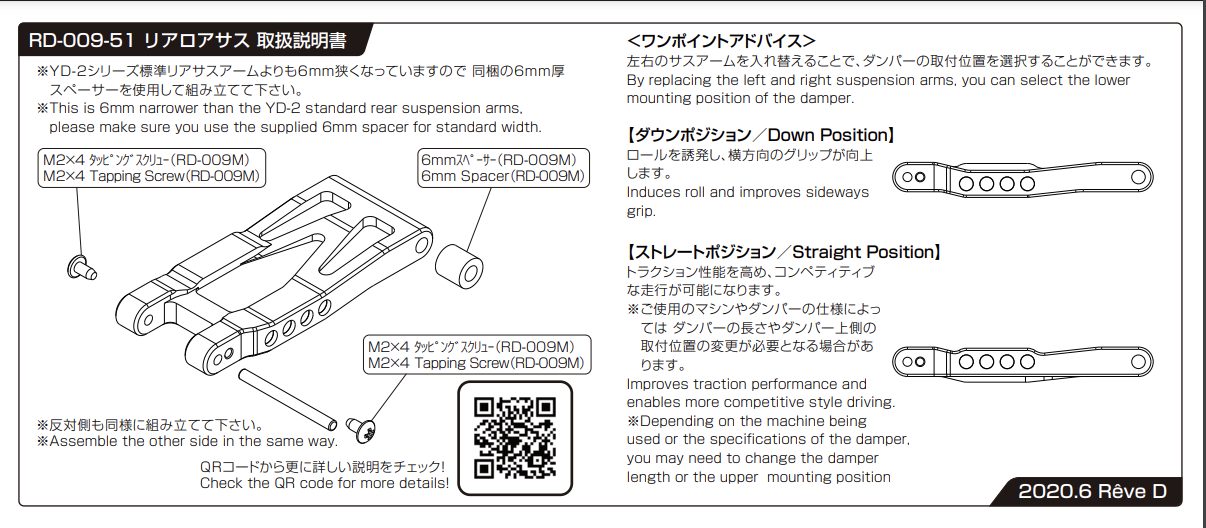

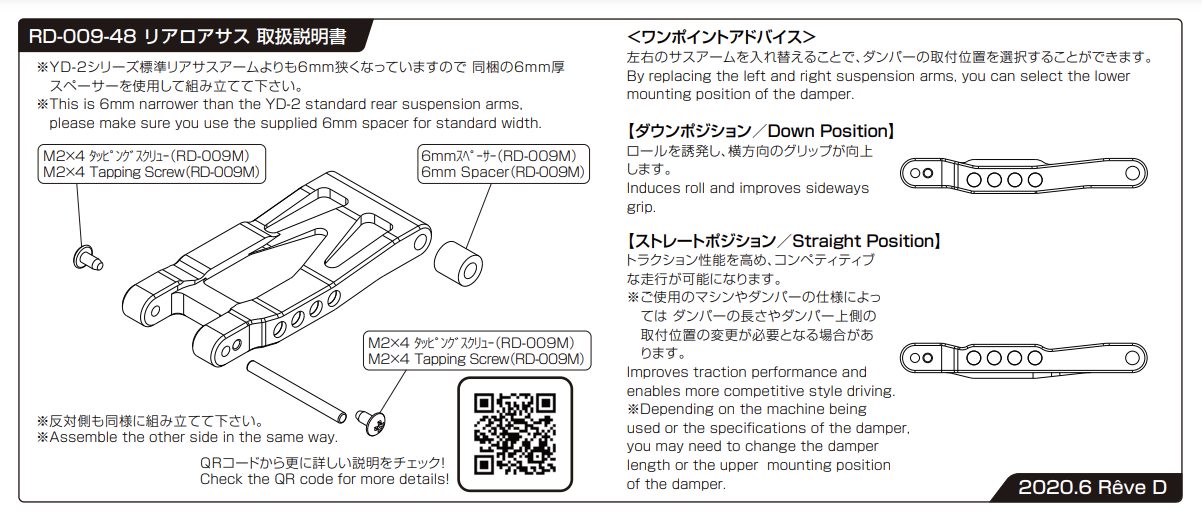

<Explanation of reversible structure>
By exchanging the left and right suspension arms, the mounting height of the damper can be selected.


◆ Down position You

can actively induce rolls and improve lateral grip.


◆ Straight position

traction performance is improved and competitive driving is possible.
* Depending on the machine you are using and the specifications of the damper, it may be necessary to change the length of the damper and the mounting height on the upper side of the damper.
